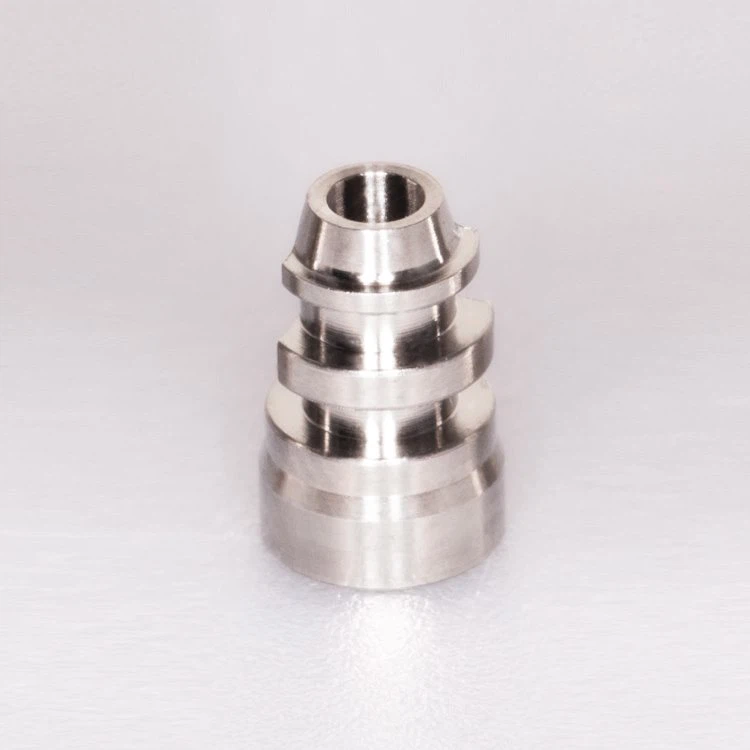

Transfer Impression Coping

Without exception, all DSI Transfer impression copings are constructed from superior high tensile, robust, and durable titanium alloys.

1. Unscrew the Transfer impression copings Healing Cap in counterclockwise direction using the Screwdriver.

2. Examine and rinse the internal connection of the implant thoroughly to remove any blood, tissue or other debris.

3. Push the Impression Cap for the Implants onto the implant shoulder until it clicks into place. Gently turn the Impression Cap for the Implants to ensure it is in the correct position.

When the cap is in the correct position, you should be able to rotate it on the implant without it coming loose.

4. While inserting the Positioning Cylinder ensure that the octagon is properly aligned with the octagon inside the implant, and pushed into the white Impression Cap for Implants as far as it will go.

5. A standard impression tray can be used or a prefabricated tray provided by the dental lab.

6. Apply a light-bodied elastomeric impression material (e.g., lightbodied polyvinyl siloxane or polyether rubber) around the Impression Cap for the Implants and the Positioning Cylinder.

Meanwhile, load the impression tray with heavy-bodied impression material and seat it directly in the mouth over the light-bodied impression material.

7. Once the impression material is cured, carefully remove the tray. The Transfer impression copings Cap and Positioning Cylinder remain in the impression, as they are removed from the implant when the impression is removed from the patient’s mouth.

8. Inspect the impression to check that the impression material has completely adapted around the Impression Cap for the Implants.

9. Rinse the internal connection of the implant thoroughly to remove any impression material, or other debris.

10. If necessary, take a bite registration. Insert the Bite Registration Aid into the implant. You should feel this “snap” into the internal configuration of the implant.

11. Shorten the Bite Registration Aid (if needed).

Apply the bite registration material. To ensure the repositioning from the mouth to the master cast, the occlusal area and the lateral flat side of the Bite Registration Aid must be adequately surrounded with the registration material.

12. Perform a color assessment for the future crown.

13. Rinse the internal connection of the implant thoroughly to remove any impression material, bite registration paste or other debris.

14. Put the Healing Cap back onto the Implant to prevent soft tissue collapse.

15. Take an impression of the opposing arch, if this was not already done at a previous visit.

16. Send the impression(s), bite registration, color assessment and lab prescription to the dental technician.

When the transfer impression coping tray is sent to the lab, the dental technician seats the Implant Analog into the impression component inside the impression to find the correct position of the implant. The master model is then created with dental stone. The use of a soft tissue mask by your dental technician is also recommended.

Arrange for your patient to return in about 1-2 weeks for the insertion of the final prosthesis, depending on the production time in the lab. Please read the next module on fabrication of the final prosthesis, which gives you more information on what to communicate to the dental technician in order to obtain the desired final prosthesis.

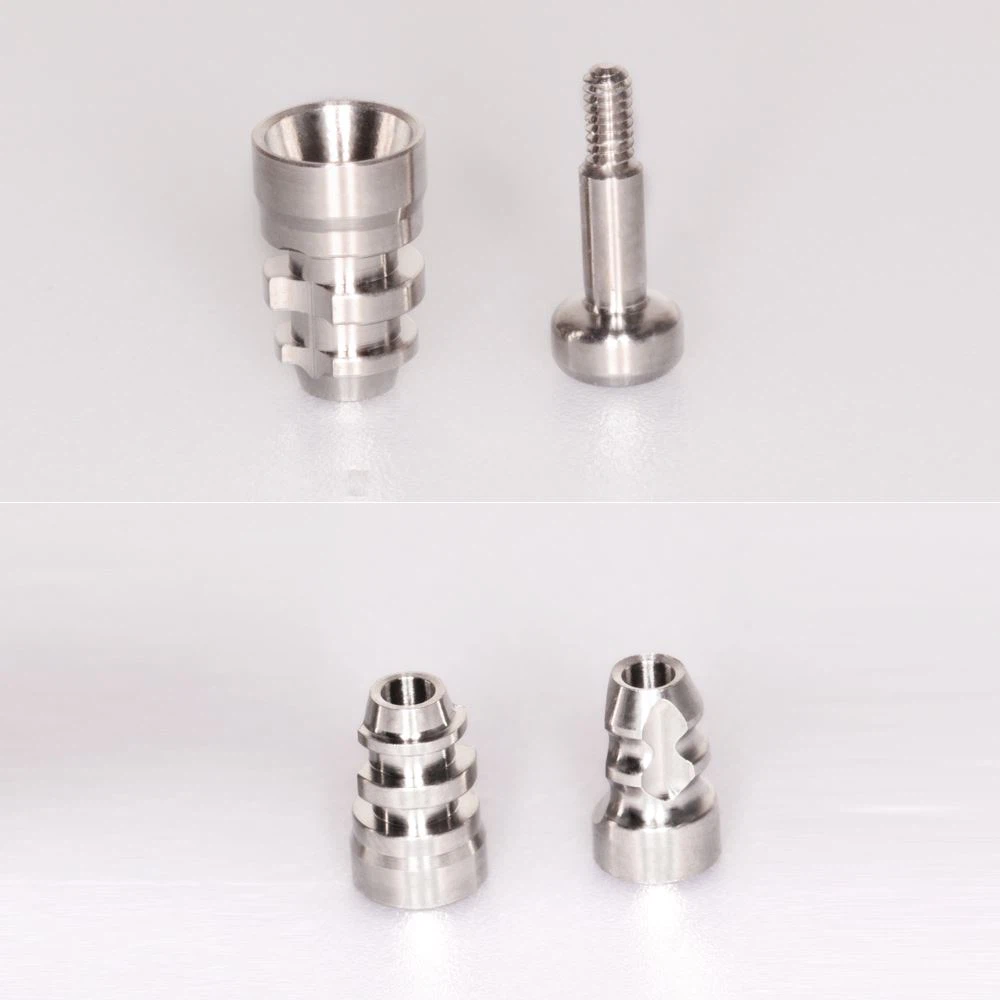

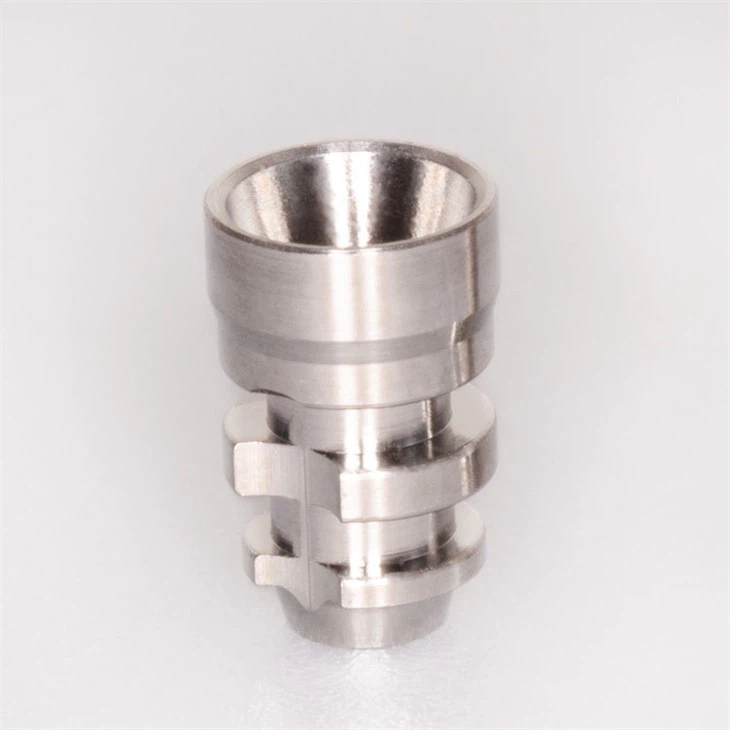

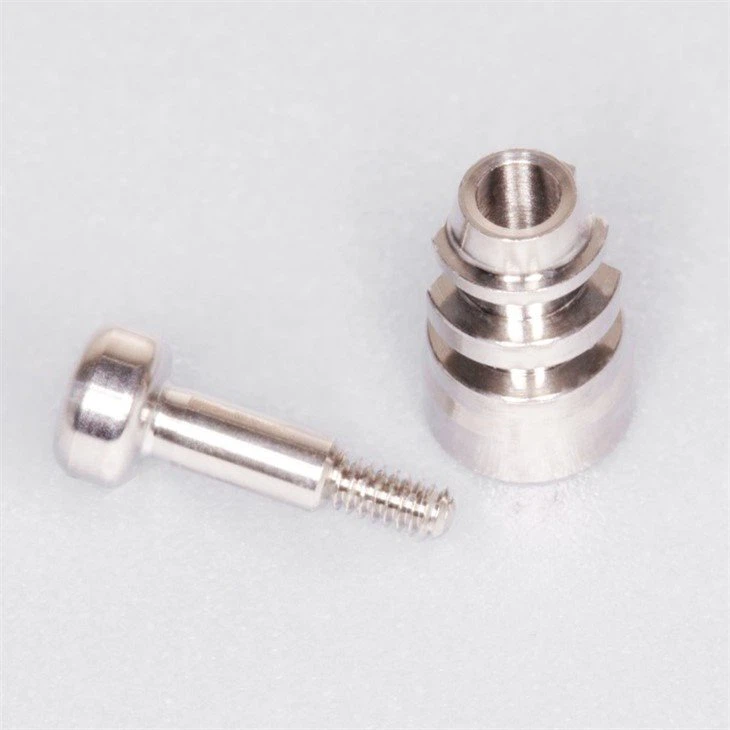

Transfer impression coping Images

Transfer impression coping Compatible System

Certifications

Packing & Delivery

Company Profile

Exhibition

FAQ

1. How can i get the price?

We usually quote within 24 hours after we get your inquiry(include weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?

Yes.Please feel free to contact us.

3. What is your lead time?

It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

4. What is your payment term?

T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5. What is the shipping method?

It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

6. How do you make our business long-term and good relationship?

1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Hot Tags: transfer impression coping, China, suppliers, manufacturers, factory, wholesale, buy, price, for sale, made in China
