Implant Direct Scan Body

Implant direct scan body for laboratory and Intraoral Scanner

● With Titanium external Hexagon

● Usable with the Software of: 3Shape, Exocad, Dental Wings

● Material (Body) Polyether Ether Ketone "PEEK” (not burnable)

● Material (Hexagon): Titanium Grad 5

Product description

The implant direct scan body represent the position and orientation of the respective dental implant, analog or abutment in CAD/CAM scanning procedures. This helps the CAD/CAM software to correctly align the subsequent CAD/CAM restorations

We have 2 types of scan body: Intraoral scan body and Model scan body.

Product properties and benefits

Improved handling

● Only two components: scan body and self-retaining screw

Improved functionality

● Optimized geometry for the Scan body, Dental Wings 3 Series, Dental Wings 7 Series Scanner.

● Optimized system configuration for multi-unit restorations

● Available on implant level as well as on abutment level

High-performance material

The position and orientation of a dental implant or lab analog are captured by the implant direct scan body used by a dental clinician with an IOS and a dental lab with a model scanner during the digital scanning process. The titanium base interface is attached to a Peek material implant direct scan body. For simpler placement and as a solution for sub-crestal implant placement, the body is non-flared. The titanium base interface offers a more exact fit and better x-ray visibility.

● PEEK for excellent scanning results

Step-by-step instructions for use

Step 1 – Disinfection

Disinfect the scan post, scan cap and fixation screw. Use cleaning agents and disinfectant solutions that are suitable for dental use.

Step 2 – Securing against aspiration

Secure the implant direct scan body components against aspiration by using surgical wire or floss in the special grooves around the scan cap and the scan post. The fixation screw securely engages with the Screwdriver.

Step 3 – Placement

Ensure that the components are clean, disinfected and undamaged (no scratches, deformations or discolorations). Mount the scan post in the implant and check for proper fit.

Step 4 – Assembling

Insert and hand-tighten the fixation screw. Use the Screwdriver for this step. Check for proper fit and for any rotational or vertical looseness. Place the scan cap onto the scan post. Ensure that the flat parts in the connection area of the scan cap and the scan post are aligned. The flat parts are the rotational security feature between scan cap and scan post. If correctly placed, the cap clicks onto the post. Slightly press with your fingertip to close any gaps between the cap and post.

Step 5 – Scanning

Make sure to select the right Scanbody according to the software information. The Scanbody is now ready for scanning. Ensure the correct orientation of the Scanbody in order to avoid deformation or inaccurate scan information regarding the positioning of the implant or analog. Follow the instructions provided with the scanner. Do not reuse the Scanbody; it is intended for single use only.

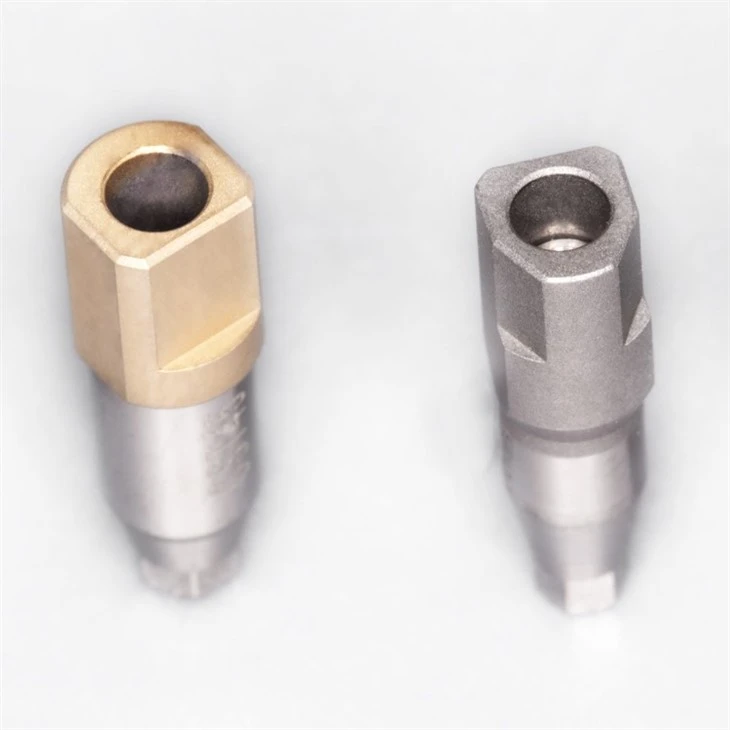

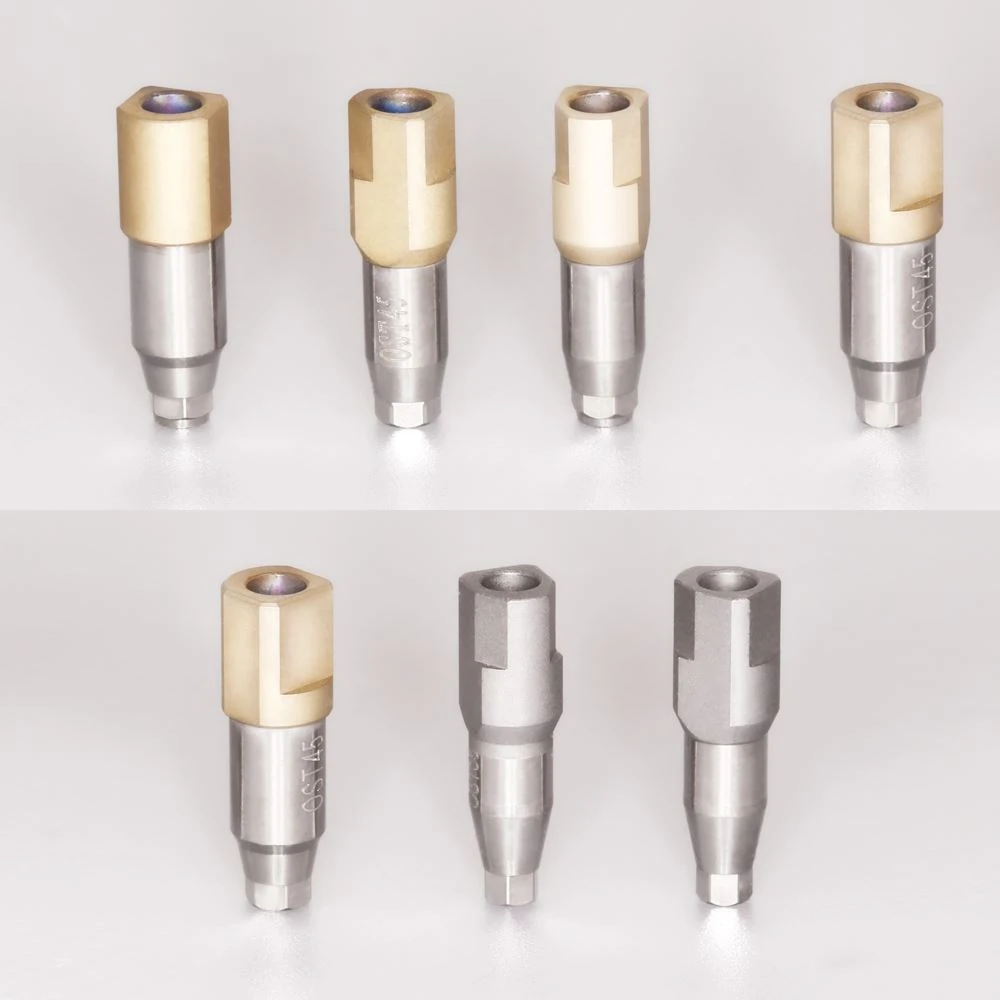

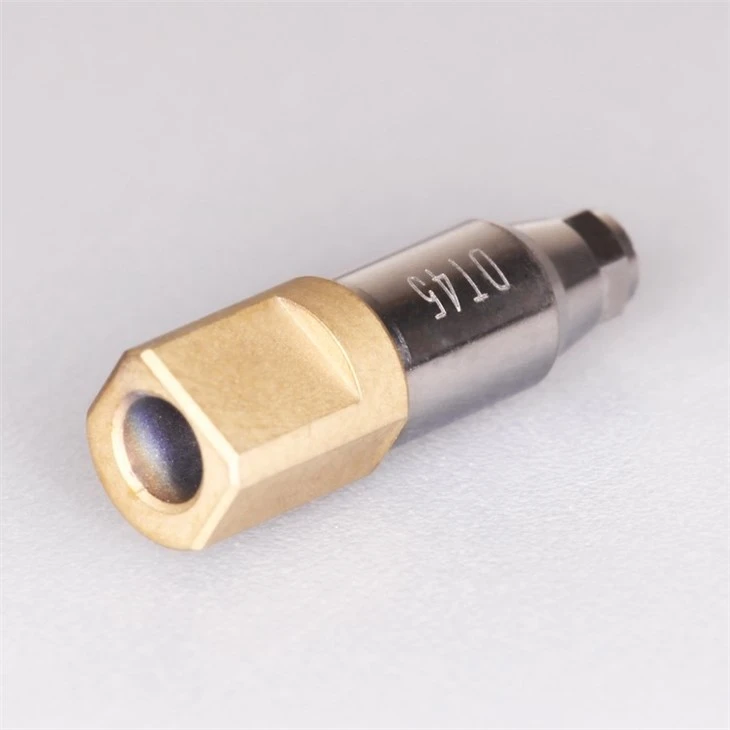

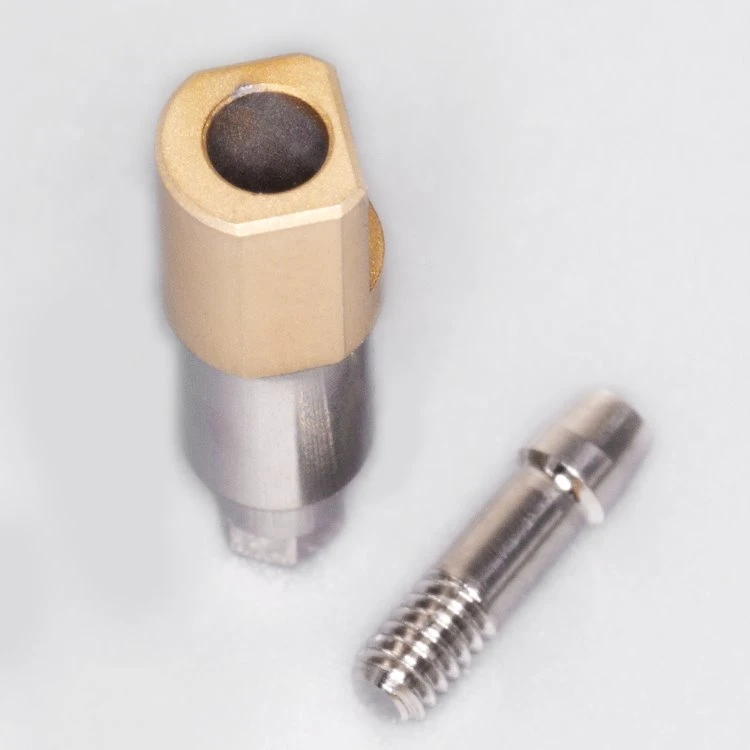

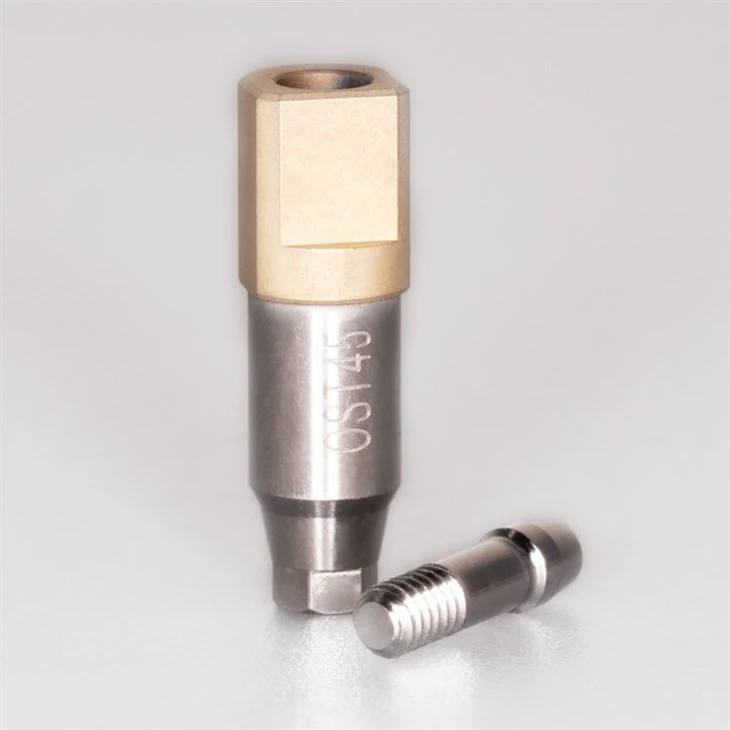

Implant direct scan body Images

Implant direct scan body Compatible System

Certifications

Packing & Delivery

Company Profile

Exhibition

Our Factory And Services

Chiriment is aImplant direct scan body professional manufacturer in the  industry. Our Implant Scan Body has a solid market reputation.A professional technical training team and an independent R&D team were first established by Chiriment. All of the customers have given our Implant direct scan body very high praise for the efforts it has made.The Chiriment is dedicated to the direct scan body and to producing high-precision, high-quality products in accordance with standards.By the shipment, each item from Chiriment must pass a strict and meticulous inspection and rechecking.
